Design electrical panels faster.
Deliver with confidence.

Panelworks is the all-in-one platform for electrical panel design — from the first component to the final documentation package.

Apply for Early AccessNo credit card needed
Schneider ElectricABBhagerSIEMENSEatonLEGRANDCHINTNOARKETIWAGOHYUNDAIDoepke
01 — The builder

Build the real panel, not an abstract drawing.

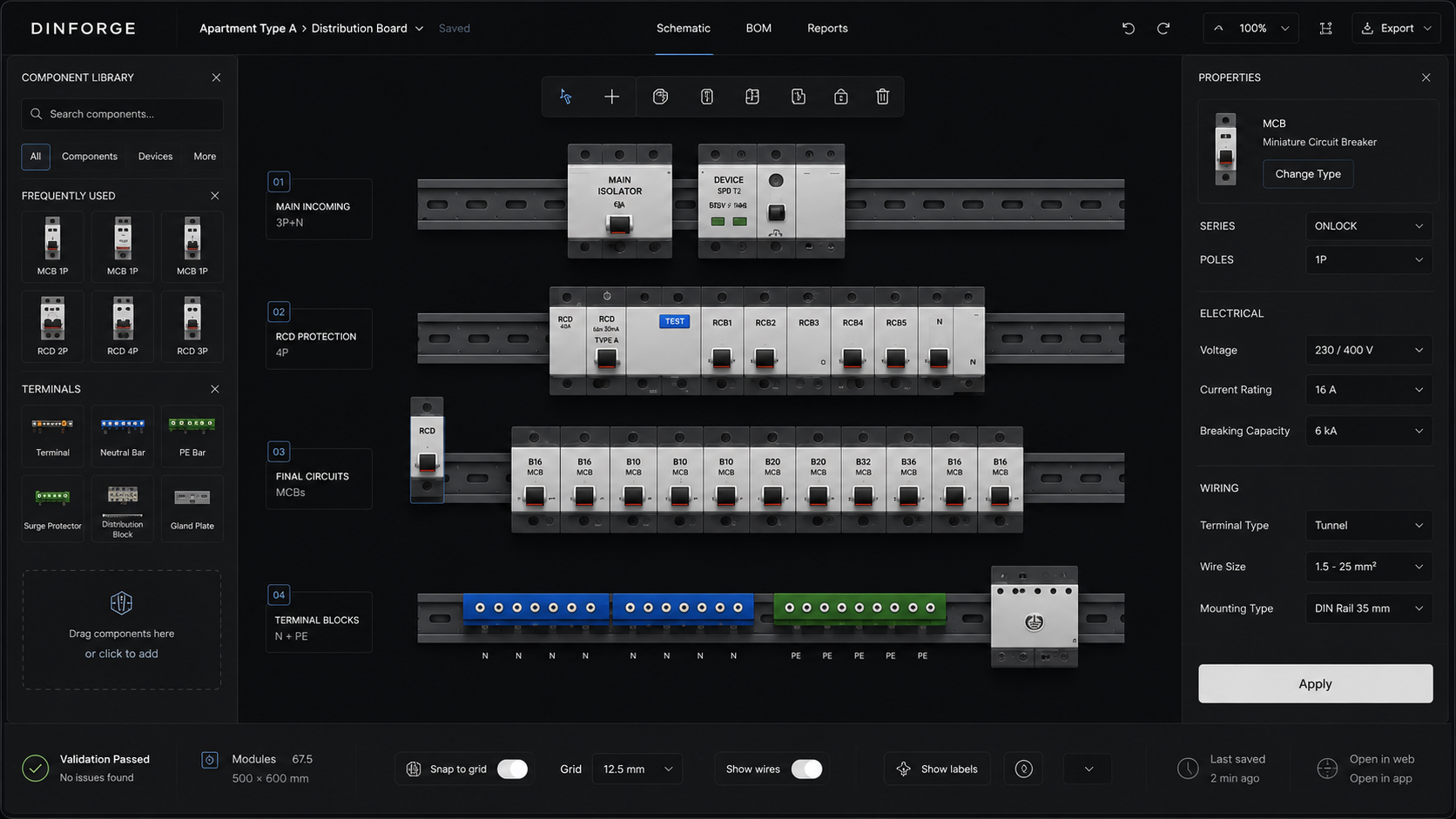

Place real devices on real DIN rails at real widths, and see the physical panel before you build it. What you lay out is what gets assembled.

L1L2L3L1L2L3L1L2L340ARCCB30mA · ATESTOFFB16MCBOFFB16MCBOFFB16MCBOFFB10MCBOFFB10MCBOFF
40ARCCB30mA · ATESTOFFB16RCBO30B16RCBO30B16RCBO30TYPE 21PB16MCBOFFB16MCBOFFB16MCBOFFB16MCBOFFB16MCBOFF1B16RCBO30B16RCBO30B16MCBOFFB16MCBOFF
02 — Wiring

Wire the panel, not just the drawing.

Connect real terminals, busbars, distribution blocks and neutral/PE systems. Every connection is project data — with full manual control, and assistance only when you want it.

03 · Planning

The board is more than what is on the rail.

Reserve the ways somebody is keeping for a meter that has not arrived. Mark the stretch where the trunking crosses. Sketch on it, write on it, measure it. All of it stays with the drawing — and none of it reaches the bill of materials.

40ARCCB30mA · ATESTOFFB16MCBOFFB16MCBOFFB10MCBOFFReserved3M · 54 mmTrunkingMeter fitted in March —leave three ways clear.54 mm
Wiring diagram21
CONNECTIONS20
Board schedule400V 3~
Main switchMain switch63A
PE barPE
SPDSurge protectionType 2
RCDFI1 — RCD group 140A / 30mA
01Kitchen sockets — KitchenB16
02Living room sockets — Living roomB16
03Lighting — Apartment lightingB10
RCDFI2 — RCD group 240A / 30mA
04Washing machine — Utility roomB20
05BathroomB16
WAYS10
Bill of materials56
QTYPARTREF
1Comb busbarComb — FI2 group
1Comb busbar3-pole comb — FI1 group
1Distribution blockX1
1PE busbarPE1
1Main switchQ1
1MCBQF3
3MCBQF1, QF2, QF5
1MCBQF4
19 UNIQUE PARTS56
04 · Documentation

Draw it once. The documents follow.

The wiring diagram, the bill of materials and the board schedule are read off the model you already drew, not typed up again afterwards. Change a breaker and all three change with it — so the paperwork cannot quietly stop describing the panel.

EARLY ACCESS

Panelworks is in Early Access.

It is free while we are, with no card and no limit on what you can draw. Pricing arrives once it has earned its keep — and everyone here before then will hear about it long before anything changes.

Apply for Early Access

Invite-only for now. Come and ask — we read everything.

Questions, answered.

Panelworks is a visual design tool for DIN-rail systems. You lay out components on the rail, connect them visually, and Panelworks generates the wiring plan and a complete bill of materials from the same model — no separate schematic and BOM to keep in sync.
Drag components onto a DIN rail and draw the connections between them the way you think about the circuit. There is no low-level schematic to redraw — the layout you build is the source of truth.
It is derived automatically from the connections you draw. As you wire components together on the canvas, Panelworks builds the wiring plan live, so it always matches what you have actually designed.
Every component you place carries its real part data, so the BOM builds itself as you design — quantities, part numbers and references, ready to export. No re-keying parts from a drawing.
Panelworks ships with a growing library of common DIN-rail components. During Early Access we are adding manufacturers and parts continuously — tell us what you need on Discord and we will prioritise it.
None right now. Panelworks is in Early Access, so the full tool is free while we build it out. Paid plans come later, with plenty of notice, and early users get looked after.
Get started in minutes

Ready to design
better panels?

Place components, wire them up and export the full documentation set — all from a single model.

Apply for Early Access
Free forever planNo credit cardCancel anytime
